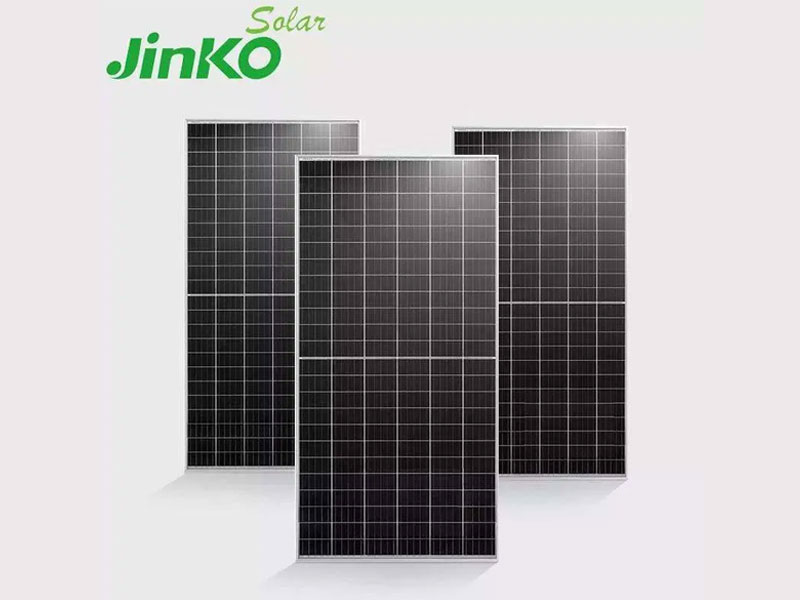

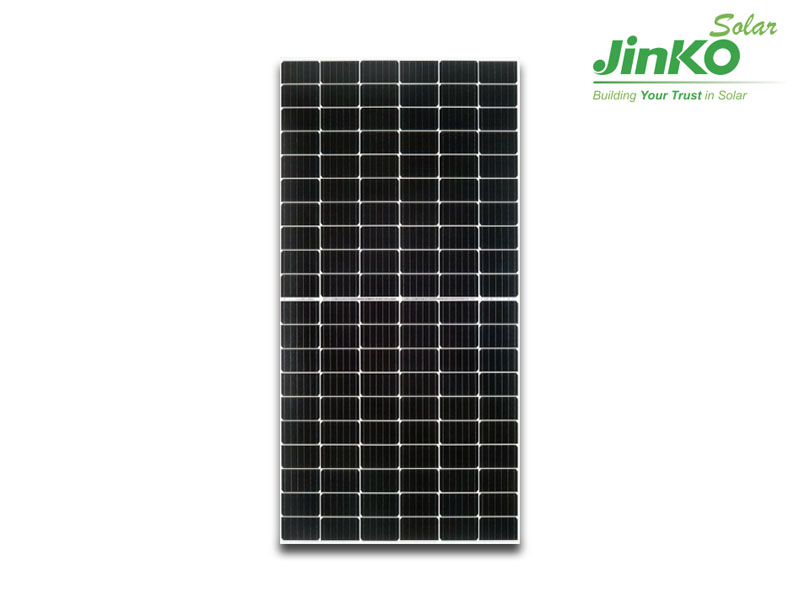

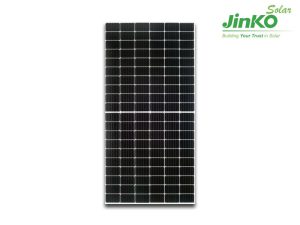

Jinko 555 Watt Mono Solar Panel

Model: JKM-555M-72HL4-V
Type: Mono-Facial Module
Power Output: 555W
Cell Count: 144 Cells
Frame: Anodized Aluminium Alloy

Key Features:

Positive Power Tolerance: 0 to 3%
Multi Busbar Technology: Enhances light trapping and current collection, improving module power output and reliability.
Reduced Hot Spot Loss: Provides a better temperature coefficient, ensuring optimal performance.
Longer Life-Time Power Yield: Durable and reliable over the long term.
Resistance: High resistance against salt mist and ammonia, ideal for harsh environments.
Cell Type: P-Type Mono-Crystalline
Junction Box: IP68 rated

Performance:

Maximum Power (STC): 555W
Maximum Power (NOCT): 413W
Maximum Voltage (STC): 40.99V
Maximum Voltage (NOCT): 38.59V
Maximum Current (STC): 13.54A
Maximum Current (NOCT): 10.70A
Open-Circuit Voltage (STC): 49.72V
Open-Circuit Voltage (NOCT): 46.93V
Short-Circuit Current (STC): 14.12A
Short-Circuit Current (NOCT): 11.40A
Module Efficiency (STC): 21.48%
Operating Temperature: -40°C to 85°C
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse: 25A

Physical Specifications:

Weight: 28.9 kg
Dimensions (L x W x D): 2278 x 1134 x 35 mm

Additional Information:

Mounting Kits & Accessories: Not included, sold separately.
Warranty: 12-Year Limited Product Warranty. Terms & Conditions Apply.

Refer to the brochure for detailed product specifications. This panel is designed to provide reliable and efficient solar energy for various applications, ensuring high performance and longevity.

Weight	28.9 kg
Dimensions	227.8 × 113.4 × 3.5 cm
Cell Type	P type Mono-crystalline
No. of cells	144 (6×24)
Dimensions	2278×1134×35mm (89.69×44.65×1.38 inch)
Weight	28 kg (61.73 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Output Cables	TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
