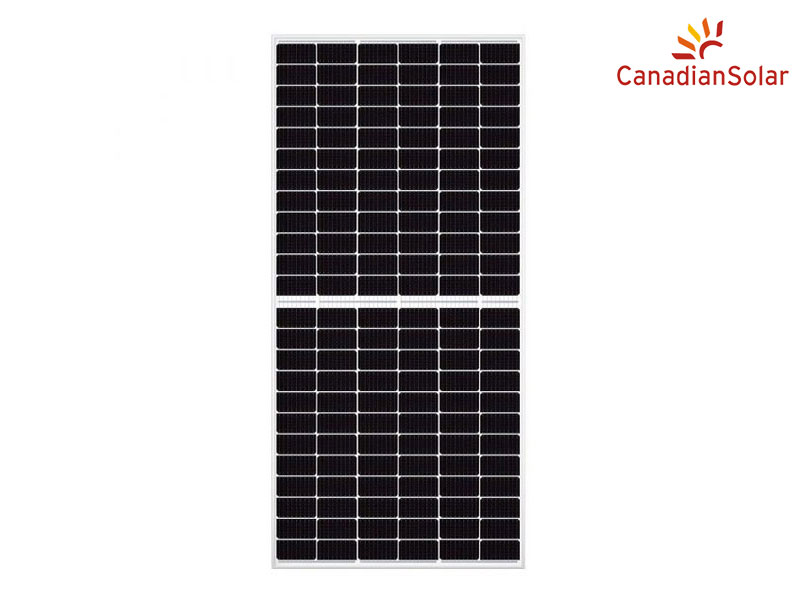

Canadian Solar 144 Cell 550W SHP MONO PERC Module HiKu (EVO2 Connector)

Key Features:

• Module Power: Up to 550 W
• Module Efficiency: Up to 21.6%
• Lower LCOE: Up to 4.5% reduction
• Lower System Cost: Up to 5.6% reduction
• LID / LeTID Mitigation Technology: Up to 50% lower degradation
• Compatibility: Suitable with mainstream trackers, cost-effective for utility power plants
• Shading Tolerance: Improved performance in shaded conditions
• Micro-Crack Minimization: Designed to reduce the impacts of micro-cracks
• Load Capacity:
  • Heavy snow load up to 5400 Pa
  • Wind load up to 2400 Pa*

Canadian Solar 550W SHP Mono Solar Panel specification:

• Nominal Max. Power (Pmax): 550 W
• Opt. Operating Voltage (Vmp): 41.7 V
• Opt. Operating Current (Imp): 13.20 A
• Open Circuit Voltage (Voc): 49.6 V
• Short Circuit Current (Isc): 14.00 A
• Module Efficiency: 21.5%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 25A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 10 W
• Cell Type: Mono-crystalline
• Cell Arrangement: 144 [2 x (12 x 6) ]
• Dimensions: 2261 ˣ 1134 ˣ 30 mm
• Weight: 27.6 kg
• Front Cover: 3.2 mm tempered glass with anti-reflective coating
• Frame: Anodized aluminum alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) or customized length*
• Connector: T6 or MC4-EVO2
• Per Pallet: 35 pieces

Canadian Solar 550W SHP Mono Solar Panel Warranty:

• Enhanced Product Warranty: 12 years on materials and workmanship*
• Power Performance Warranty: 25 years of linear performance
  • 1st year power degradation no more than 2%
  • Subsequent annual power degradation of no more than 0.55%

Canadian Solar Company Overview:

CSI Solar Co., Ltd. is dedicated to providing high-quality solar photovoltaic modules, solar energy, and battery storage solutions. Recognized as the No. 1 module supplier for quality and performance/price ratio in the IHS Module Customer Insight Survey, CSI Solar has delivered over 67 GW of premium-quality solar modules worldwide over the past 20 years.

Choose the Canadian Solar 550W SHP MONO PERC Module HiKu for a high-efficiency, reliable solar solution with excellent long-term performance and durability.
