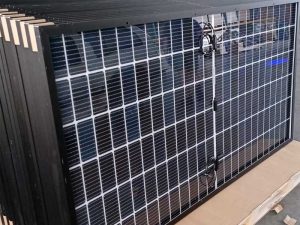

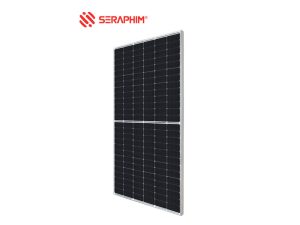

Seraphim 550W Mono Solar Panel

Seraphim redefined the high-efficiency module series by integrating 182mm silicon wafers with multi-busbar and half-cut cell technologies.
Seraphim solar panels combined creative technology effectively and improved the module efficiency and power output.

KEY FEATURES

Less mismatch to get more power
Less power loss by minimizing the shading impact
Competitive low-light performance
3 times EL tests to ensure the best quality
An ideal choice for utility and commercial scale projects by reduced BoS and improved ROI
Outstanding reliability is proven by PVEL for stringent environmental conditions:
Sand, acid, salt, and hailstones
2400 Pa wind load and 5400 Pa snow load
Anti-PID

Warranty

15-year Guarantee on product material and workmanship

30-year Linear power output warranty

Seraphim information

Are Seraphim solar panels any good?

They use modern technology like PERC and half-cut cells, and their 25-year performance warranty numbers compare favorably with those from other Tier 1 solar panels from brands like Trina and Longi, and they should last a good long time.

Who makes Seraphim solar panels?

Seraphim is a Chinese solar panel manufacturer, originally established in 2011. Established with a mission to develop a better world through continuous solar innovation, this is backed by 100+ members of their research and development team. This research has resulted in over 100 technical patents being lodged.

Is Seraphim Tier 1 panel?

Seraphim is listed as Tier 1 solar module maker by BNEF. Currently, Seraphim has a global production capacity of 7.5 GW. Seraphim serves worldwide customers with high-quality products and professional services. By the end of 2021, 14GW Seraphim’s products have been widely applied in over 40 countries.

Weight	32 kg
External Dimension	2278x1134x30 mm
Weight	26.5 kg
Solar Cells	PERC Mono (144pcs)
Front / Back Glass	3.2mm AR coating tempered glass, low iron
Frame	Black anodized aluminium alloy
Junction Box	IP68, 3 diodes
Output Cables	4.0mm2, 250mm(+)/350mm(-) or Customized Length
Maximum Power -Pmp (W)	550
Open Circuit Voltage -Voc (V)	49.70
Short Circuit Current -Isc (A)	14.00
Maximum Power Voltage -Vmp (V)	42.05
Maximum Power Current -Imp (A)	13.08
Module Efficiency STC-ηm (%)	21.29
Power Tolerance（W）	(0, +4.99)
Pmax Temperature Coefficient	-0.34 %/°C
Voc Temperature Coefficient	-0.26 %/°C
Isc Temperature Coefficient	+0.05 %/°C
