Sunsynk 5.12kWh 51.2V Lithium Battery – Advanced LiFePO4 Energy Storage Solution

Sunsynk 5.12kWh Lithium Battery Introduction

The Sunsynk 5.12kWh lithium battery is a premium LiFePO4 energy storage system engineered for solar self-consumption, backup power, and hybrid inverter installations. Designed for reliability, safety, and long-term durability, the Sunsynk 5.12kWh battery delivers stable power output, high usable capacity, and intelligent battery management to support modern energy needs in homes and businesses.

With a nominal capacity of 5.12kWh and a rated voltage of 51.2V, the Sunsynk 5.12kWh lithium battery ensures efficient energy storage and dependable discharge performance. This makes it an ideal battery solution for users seeking scalable, high-cycle lithium storage paired with Sunsynk hybrid inverters or compatible inverter platforms.

Sunsynk 5.12kWh LiFePO4 Battery Chemistry & Safety Advantages

The Sunsynk 5.12kWh battery utilizes Lithium Iron Phosphate (LiFePO4) chemistry, one of the safest and most stable lithium battery technologies available today. LiFePO4 batteries offer superior thermal stability, reduced fire risk, and extended lifespan compared to traditional lithium-ion or lead-acid batteries.

This chemistry enables the Sunsynk 5.12kWh lithium battery to maintain consistent performance under high loads, deep discharge cycles, and fluctuating environmental conditions. The integrated Battery Management System (BMS) protects against over-voltage, under-voltage, over-current, temperature extremes, and short circuits, ensuring safe and efficient operation throughout the battery’s lifecycle.

Usable Capacity, Depth of Discharge & Real-World Performance

The Sunsynk 5.12kWh lithium battery offers a depth of discharge (DoD) of up to 95%, allowing users to access nearly the full rated energy capacity without compromising battery health. This means more usable power for critical household loads such as lighting, refrigeration, Wi-Fi, office equipment, security systems, and entertainment devices.

With a maximum discharge current of 100A and a charge current of 50A, the Sunsynk 5.12kWh battery can handle moderate to high power demands, making it suitable for both essential backup circuits and full-home hybrid systems depending on inverter sizing and system configuration.

Sunsynk 5.12kWh Battery Cycle Life & Long-Term Cost Efficiency

Designed for long-term ownership, the Sunsynk 5.12kWh lithium battery delivers more than 6000 charge cycles at 25°C and 0.5C discharge. This equates to well over 10 years of daily cycling under normal operating conditions, significantly reducing replacement costs over time.

By supporting shallow and deep cycling patterns, the Sunsynk 5.12kWh battery is optimized for daily solar self-consumption, peak shaving, load shifting, and backup power use cases. This makes it a cost-effective investment for users looking to maximize return on investment from their solar and battery storage systems.

Scalable Energy Storage with Sunsynk 5.12kWh Batteries

The Sunsynk 5.12kWh lithium battery supports system scalability through parallel connection, allowing up to 8 battery units to operate together. This enables total storage capacity expansion beyond 40kWh, making the system suitable for growing energy needs over time.

This scalability makes the Sunsynk 5.12kWh battery ideal for homeowners planning future solar expansions, commercial users increasing load demand, and businesses requiring higher energy autonomy and extended backup duration.

Smart Communication & Inverter Compatibility

The Sunsynk 5.12kWh battery features intelligent communication interfaces including RS485 and CAN, ensuring seamless integration with Sunsynk hybrid inverters and other supported inverter brands. Optional Wi-Fi connectivity allows users to monitor battery status, state of charge, cycle count, and system health remotely.

Real-time communication between the battery and inverter ensures optimized charge/discharge control, improved efficiency, and extended battery lifespan through adaptive energy management.

Sunsynk 5.12kWh Battery Physical Design & Installation Flexibility

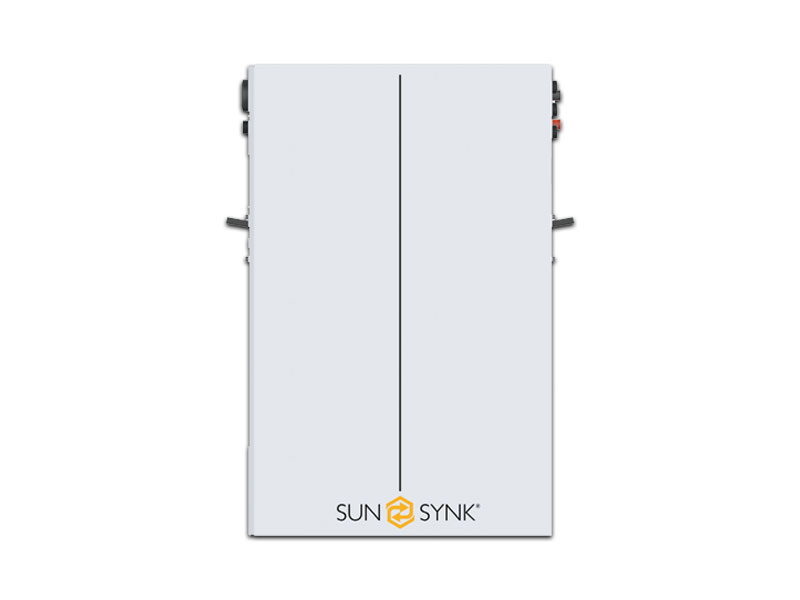

The Sunsynk 5.12kWh lithium battery features a robust metal enclosure with a clean white finish, designed to complement modern solar and electrical installations. The compact footprint and vertical form factor allow efficient use of wall or floor space in garages, plant rooms, utility areas, and server-style energy rooms.

With dimensions of 420 × 140 × 650 mm and a weight of approximately 45 kg, the Sunsynk 5.12kWh battery offers an excellent balance between capacity density and ease of installation. The unit supports both wall-mounted and floor-mounted installation options, providing flexibility for residential and commercial deployment.

Environmental Protection & Operating Conditions

Rated at IP65, the Sunsynk 5.12kWh lithium battery is protected against dust ingress and water jets, making it suitable for indoor installations and sheltered outdoor environments. The battery operates within a charge temperature range of -10°C to 50°C and a discharge range of -20°C to 50°C, ensuring reliable performance across diverse climate conditions.

The system supports humidity levels of 5% to 95% RH (non-condensing) and altitudes below 2000 meters, making it suitable for most residential and commercial installations.

Compliance, Certifications & Product Warranty

The Sunsynk 5.12kWh battery complies with major international safety and quality standards, including IEC62619, CE, UN38.3, and ROHS certifications. These certifications confirm compliance with global lithium battery safety, transport, and environmental regulations.

The product includes a manufacturer-backed warranty of 5 to 10 years, depending on installation conditions and Sunsynk warranty policies, ensuring long-term peace of mind and dependable after-sales support.

Ideal Applications for Sunsynk 5.12kWh Lithium Battery Systems

The Sunsynk 5.12kWh lithium battery is suitable for a wide range of energy storage applications, including residential solar battery storage, hybrid inverter systems, backup power solutions, off-grid solar installations, small business energy backup, peak shaving, load shifting, and critical power resilience systems.

Whether deployed in a home solar setup or a commercial energy management solution, the Sunsynk 5.12kWh battery delivers dependable, scalable, and high-performance lithium energy storage.
