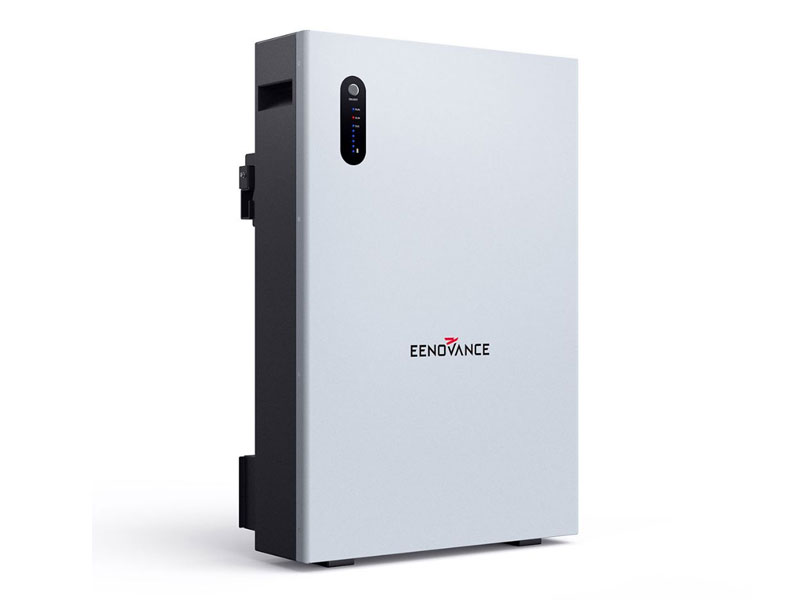

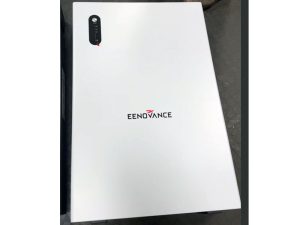

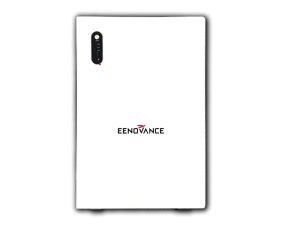

Eenovance MANA 10.65kWh 51.2V LiFePO4 Low Voltage Wall Mount Battery
Overview of the Eenovance MANA 10.65kWh Battery
The Eenovance MANA 10.65kWh battery is a low-voltage lithium iron phosphate (LiFePO4) energy storage solution designed for residential solar, backup power, and hybrid energy systems. Operating at a nominal voltage of 51.2V, the MANA 10.65 battery forms part of the modular Eenovance residential battery range and is suitable for daily cycling applications.
What the Eenovance MANA 10.65 Battery Is Designed to Do
The Eenovance MANA 10.65kWh battery stores DC electrical energy and supplies that energy to a compatible low-voltage inverter. It is designed to:
- Provide backup power during grid outages
- Increase solar self-consumption in hybrid systems
- Support daily charge and discharge cycles
- Scale efficiently for larger low-voltage battery banks
What the Eenovance MANA Battery Is Not
The MANA 10.65 is a battery only and does not perform inverter functions. Specifically:
- It is not an inverter and cannot generate AC power
- It does not include MPPT charge controllers
- It does not connect directly to solar panels
- It must not be connected to high-voltage battery systems
System Type and Voltage Class
The Eenovance MANA 10.65 battery is designed for 48V-class low-voltage battery systems. Electrical characteristics include:
- Nominal battery voltage: 51.2V
- Operating voltage range: 44.8V to 58.16V
- Low-voltage DC architecture for inverter compatibility
Battery Chemistry and Safety Design
The battery uses lithium iron phosphate (LiFePO4) cell technology selected for safety, thermal stability, and long service life. This chemistry offers:
- Improved thermal stability compared to other lithium-ion chemistries
- High cycle life for daily energy storage
- Cobalt-free cell composition
Battery Management System and Protection
An integrated intelligent battery management system continuously monitors battery operation and provides:
- Over-charge and over-discharge protection
- Over-current and short-circuit protection
- High and low temperature protection
- Automatic cell balancing
Charge and Discharge Performance
The Eenovance MANA 10.65 battery is designed to support higher residential inverter loads within a low-voltage system.
Charge and Discharge Specifications
- Maximum continuous charge current: 200A
- Maximum continuous discharge current: 200A
Scalability and Parallel Expansion
The Eenovance MANA battery system is designed to scale as energy requirements increase. Parallel capabilities include:
- Support for up to 15 batteries connected in parallel
- Retention of a 51.2V system voltage
- Expansion without external battery controllers
Communication and System Integration
The battery communicates with compatible inverters and monitoring systems using:
- CAN communication
- RS485 communication
- RS232 communication
- Wi-Fi connectivity for monitoring
System status is indicated via SOC status and LED indicators.
Technical Specifications – Eenovance MANA 10.65kWh Battery
- Battery chemistry: LiFePO4
- Total energy capacity: 10.65kWh
- Nominal battery voltage: 51.2V
- Operating voltage range: 44.8V – 58.16V
- Cycle life: 6000 cycles or 10 years at 80% DOD, 25°C, 70% EOL
Physical Specifications and Installation
The Eenovance MANA 10.65 battery supports flexible installation options.
- Installation type: Wall-mounted or floor-standing
- Dimensions (W × D × H): 550 × 160 × 836 mm
- Weight: 89 kg
- Ingress protection rating: IP20
Environmental Operating Limits
- Charge temperature range: 0°C to 50°C
- Discharge temperature range: -15°C to 50°C
- Environmental humidity: ≤95% RH (non-condensing)
Typical Applications for the Eenovance MANA Battery
- Residential solar energy storage systems
- Hybrid solar and backup power installations
- Low-voltage off-grid systems
- Scalable household energy storage
FAQ
Frequently Asked Questions
What inverter size is best suited for the Eenovance MANA 10.65 battery?
The Eenovance MANA 10.65 battery is well suited to low-voltage inverters in the 5kW to 12kW range. Larger inverters can be used when multiple batteries are installed in parallel, allowing higher continuous discharge capacity.
How many Eenovance MANA batteries can be connected together?
Up to fifteen batteries can be connected in parallel, allowing large low-voltage battery banks with increased capacity and power output.
Is the Eenovance MANA battery suitable for daily cycling?
Yes. The battery is rated for 6000 cycles or 10 years at 80% depth of discharge and is designed for daily charge and discharge operation.
What type of inverter communication does this battery support?
The battery supports CAN, RS485, RS232, and Wi-Fi communication, allowing integration with a wide range of compatible inverter platforms.
Can the battery be wall-mounted?
Yes. The battery supports both wall-mounted and floor-standing installation, depending on site requirements and structural support.
Does the battery include internal protection?
Yes. The integrated battery management system provides electrical, thermal, and current protection to ensure safe operation.
Is this battery suitable for backup power during grid outages?
Yes. When paired with a compatible inverter, the battery supplies stored energy during grid outages and power interruptions.
What makes the MANA 10.65 suitable for scalable systems?
High parallel capability, stable low-voltage operation, and consistent discharge performance make the MANA 10.65 suitable for scalable residential energy storage systems.
